• CFKM2

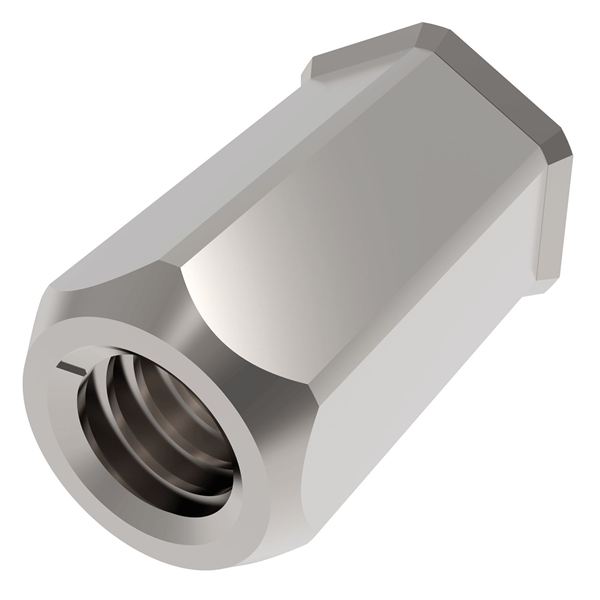

Sherex's full metric, full hex body, small flange rivet nuts are perfect for applications in high clamp load environments. Full hex body rivet nuts are the highest perfoming rivet nuts with their ability to resist pull out, spin out, and torque out compared to round body rivet nuts. Available in M3 - M12 thread sizes and with a closed end option.

Click here for CFKM Closed End Rivet Nuts>>

1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Thread Size

Grip Range Min

Grip Range Max

Length Nom. (±0.25)

Hole Size (+0.1)

CAD

N/A M3x0.5 N/A 0.5 mm N/A 2.0 mm N/A 10.05 mm N/A 5.0 mm N/A
N/A M3x0.5 N/A 2.0 mm N/A 3.5 mm N/A 11.55 mm N/A 5.0 mm N/A
N/A M4x0.7 N/A 0.5 mm N/A 2.5 mm N/A 10.80 mm N/A 6.0 mm N/A
N/A M4x0.7 N/A 2.5 mm N/A 4.5 mm N/A 13.50 mm N/A 6.0 mm N/A
N/A M5x0.8 N/A 0.5 mm N/A 3.0 mm N/A 13.80 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 3.0 mm N/A 5.5 mm N/A 16.50 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 5.5 mm N/A 8.0 mm N/A 19.00 mm N/A 7.0 mm N/A
N/A M6x1.0 N/A 0.5 mm N/A 3.5 mm N/A 16.20 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 3.5 mm N/A 6.0 mm N/A 19.25 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 6.0 mm N/A 9.0 mm N/A 22.25 mm N/A 9.0 mm N/A
N/A M8x1.25 N/A 0.5 mm N/A 3.5 mm N/A 17.80 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 3.5 mm N/A 6.0 mm N/A 20.80 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 6.0 mm N/A 9.0 mm N/A 23.80 mm N/A 11.0 mm N/A
N/A M10x1.5 N/A 0.7 mm N/A 3.5 mm N/A 22.00 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 3.5 mm N/A 6.0 mm N/A 25.00 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 6.0 mm N/A 9.0 mm N/A 28.00 mm N/A 13.0 mm N/A
N/A M12x1.75 N/A 1.0 mm N/A 4.0 mm N/A 24.80 mm N/A 16.0 mm N/A
N/A M12x1.75 N/A 4.0 mm N/A 7.0 mm N/A 27.80 mm N/A 16.0 mm N/A
