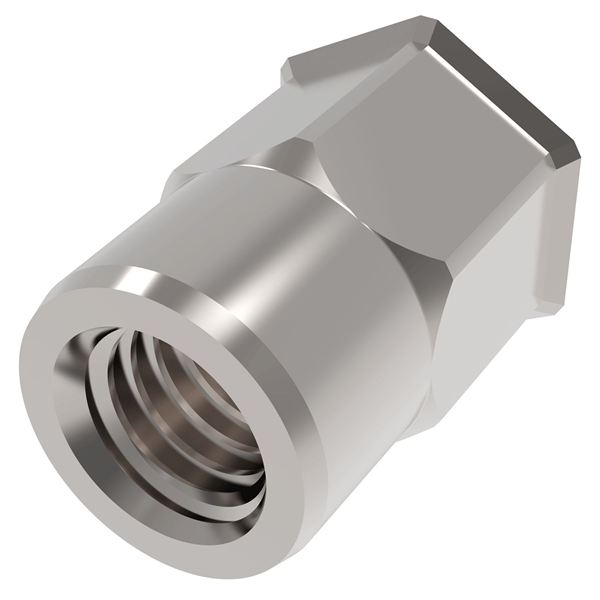

CHKM Series - Half Hex, Small Flange
Full Metric Full Hex and Half Hex Body Rivet Nuts
Sherex's half hex, small flange full metric rivet nuts are perfect for all applications. Half hex rivet nuts have a higher spin out resistance than round body rivet nuts. The small flange will allow for a near flush installation into the base material. Available in sizes M3 - M12 and in multiple grip ranges.
Item # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| CHKM2-350-2.0 | Thread Size N/A M3x0.5 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 2.0 mm | Length Nom. (±0.25) N/A 10.05 mm | Hole Size (+0.1) N/A 5.0 mm |
CAD
N/A
|
| CHKM2-470-2.5 | Thread Size N/A M4x0.7 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 10.70 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| CHKM2-580-3.0 | Thread Size N/A M5x0.8 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 13.00 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CHKM2-580-5.5 | Thread Size N/A M5x0.8 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 15.50 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| CHKM2-610-3.0 | Thread Size N/A M6x1.0 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 13.75 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CHKM2-610-5.5 | Thread Size N/A M6x1.0 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 17.40 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| CHKM2-8125-3.0 | Thread Size N/A M8x1.25 | Grip Range Min N/A 0.5 mm | Grip Range Max N/A 3.0 mm | Length Nom. (±0.25) N/A 17.25 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CHKM2-8125-5.5 | Thread Size N/A M8x1.25 | Grip Range Min N/A 3.0 mm | Grip Range Max N/A 5.5 mm | Length Nom. (±0.25) N/A 19.00 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| CHKM2-1015-3.5 | Thread Size N/A M10x1.5 | Grip Range Min N/A 0.7 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 20.30 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CHKM2-1015-6.0 | Thread Size N/A M10x1.5 | Grip Range Min N/A 3.5 mm | Grip Range Max N/A 6.0 mm | Length Nom. (±0.25) N/A 22.80 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| CHKM2-12175-4.0 | Thread Size N/A M12x1.75 | Grip Range Min N/A 1.0 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 25.00 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
