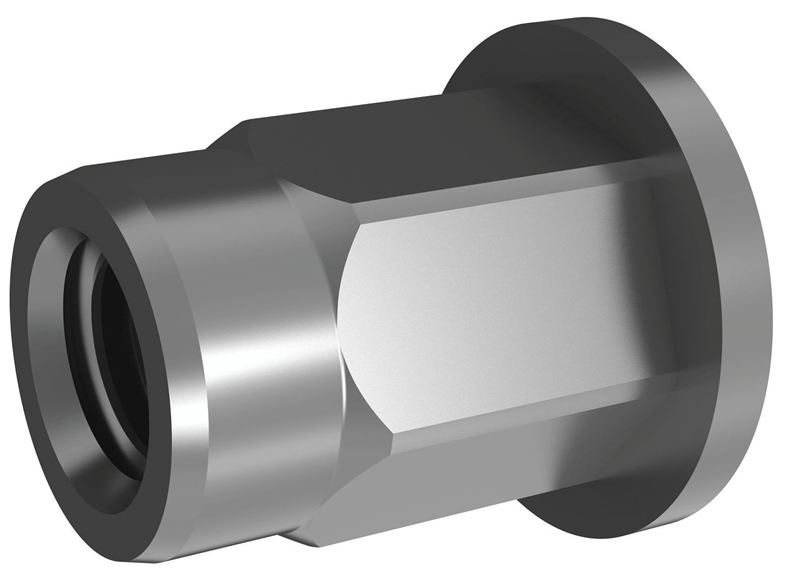

• CHLM2-Image

Sherex's half hex, large flange full metric rivet nuts are perfect for all applications. Half hex rivet nuts have a higher spin out resistance than round body rivet nuts. These are some the most popular rivet nuts on the market. Available in thread sizes M3 - M12 and in multiple grip ranges.



1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Thread Size

Grip Range Min

Grip Range Max

Length Nom. (±0.25)

Hole Size (+0.1)

CAD

N/A M3x0.5 N/A 0.5 mm N/A 2.0 mm N/A 9.75 mm N/A 5.0 mm N/A
N/A M4x0.7 N/A 0.5 mm N/A 3.0 mm N/A 10.00 mm N/A 6.0 mm N/A
N/A M5x0.8 N/A 0.5 mm N/A 3.0 mm N/A 12.00 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 3.0 mm N/A 5.5 mm N/A 14.50 mm N/A 7.0 mm N/A
N/A M6x1.0 N/A 0.5 mm N/A 3.0 mm N/A 12.75 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 3.0 mm N/A 5.5 mm N/A 15.25 mm N/A 9.0 mm N/A
N/A M8x1.25 N/A 0.5 mm N/A 3.0 mm N/A 16.50 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 3.0 mm N/A 5.5 mm N/A 19.00 mm N/A 11.0 mm N/A
N/A M10x1.5 N/A 0.7 mm N/A 3.5 mm N/A 19.75 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 3.5 mm N/A 6.0 mm N/A 22.25 mm N/A 13.0 mm N/A
N/A M12x1.75 N/A 1.0 mm N/A 4.0 mm N/A 25.00 mm N/A 16.0 mm N/A
