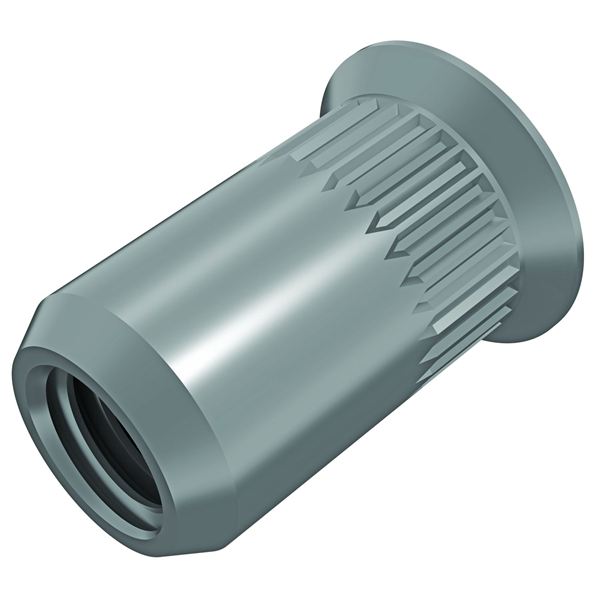

• CKCM-Image

Sherex's full metric countersunk, knurled rivet nuts are perfect for all applications. When installed, countersunk rivet nuts are flush to the base material, giving an asthetic many manufacurers and assemblers desire. The knurls help resist the rivet nut from spinning in the hole under higher torque and clamp load instances.

Click here for CKCM Closed End Rivet Nuts>>

1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Thread Size

Grip Range Min

Grip Range Max

Length Nom. (±0.25)

Hole Size (+0.1)

CAD

N/A M3x0.5 N/A 1.5 mm N/A 3.0 mm N/A 8.80 mm N/A 5.0 mm N/A
N/A M3x0.5 N/A 3.0 mm N/A 4.5 mm N/A 10.40 mm N/A 5.0 mm N/A
N/A M4x0.7 N/A 1.5 mm N/A 3.5 mm N/A 11.50 mm N/A 6.0 mm N/A
N/A M4x0.7 N/A 3.5 mm N/A 5.0 mm N/A 13.00 mm N/A 6.0 mm N/A
N/A M5x0.8 N/A 1.5 mm N/A 4.0 mm N/A 13.70 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 4.0 mm N/A 6.5 mm N/A 16.70 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 6.5 mm N/A 9.0 mm N/A 19.80 mm N/A 7.0 mm N/A
N/A M6x1.0 N/A 1.5 mm N/A 4.0 mm N/A 15.70 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 4.0 mm N/A 6.5 mm N/A 20.30 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 6.5 mm N/A 9.0 mm N/A 21.80 mm N/A 9.0 mm N/A
N/A M8x1.25 N/A 1.5 mm N/A 4.0 mm N/A 17.80 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 4.0 mm N/A 6.5 mm N/A 20.80 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 6.5 mm N/A 9.0 mm N/A 23.75 mm N/A 11.0 mm N/A
N/A M10x1.5 N/A 1.5 mm N/A 4.0 mm N/A 21.80 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 4.0 mm N/A 6.5 mm N/A 24.75 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 6.5 mm N/A 9.0 mm N/A 28.00 mm N/A 13.0 mm N/A
N/A M12x1.75 N/A 2.0 mm N/A 4.5 mm N/A 25.90 mm N/A 16.0 mm N/A
N/A M12x1.75 N/A 4.5 mm N/A 7.5 mm N/A 29.00 mm N/A 16.0 mm N/A
