• CKKM2

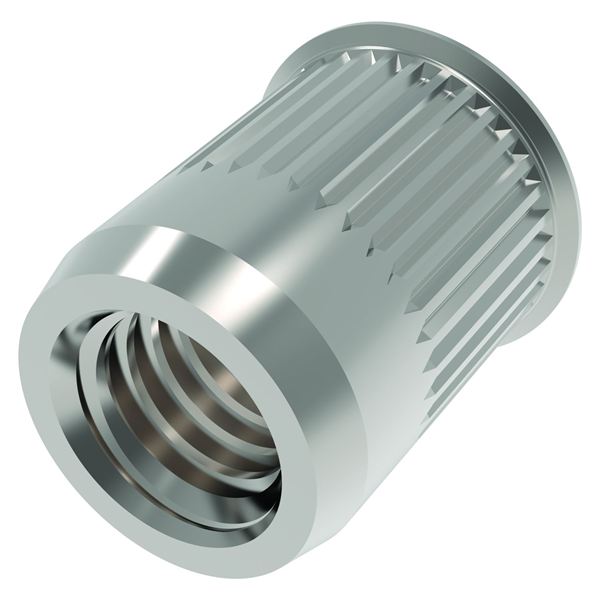

Sherex's round body, small flange full metric rivet nuts are perfect for all applications. The knurls on the body of the rivet nuts help resistance spin out once installed. The small flange makes for a near flush installation on the base material. Available in M3 - M12 thread sizes with multiple grip ranges.

Click here for CKKM Closed End Rivet Nuts>>

1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Thread Size

Grip Range Min

Grip Range Max

Length Nom. (±0.25)

Hole Size (+0.1)

CAD

N/A M3x0.5 N/A 0.5 mm N/A 2.0 mm N/A 9.00 mm N/A 5.0 mm N/A
N/A M3x0.5 N/A 2.0 mm N/A 3.5 mm N/A 10.50 mm N/A 5.0 mm N/A
N/A M4x0.7 N/A 0.5 mm N/A 2.5 mm N/A 10.70 mm N/A 6.0 mm N/A
N/A M4x0.7 N/A 2.5 mm N/A 4.5 mm N/A 12.50 mm N/A 6.0 mm N/A
N/A M5x0.8 N/A 0.5 mm N/A 3.0 mm N/A 12.75 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 3.0 mm N/A 5.5 mm N/A 14.90 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 5.5 mm N/A 8.0 mm N/A 17.40 mm N/A 7.0 mm N/A
N/A M6x1.0 N/A 0.5 mm N/A 3.0 mm N/A 13.80 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 3.0 mm N/A 5.5 mm N/A 17.40 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 5.5 mm N/A 8.0 mm N/A 19.90 mm N/A 9.0 mm N/A
N/A M8x1.25 N/A 0.5 mm N/A 3.0 mm N/A 17.25 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 3.0 mm N/A 5.5 mm N/A 18.90 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 5.5 mm N/A 8.0 mm N/A 21.40 mm N/A 11.0 mm N/A
N/A M10x1.5 N/A 0.7 mm N/A 3.5 mm N/A 20.75 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 3.5 mm N/A 6.0 mm N/A 23.50 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 6.0 mm N/A 9.0 mm N/A 26.50 mm N/A 13.0 mm N/A
N/A M12x1.75 N/A 1.5 mm N/A 4.5 mm N/A 25.80 mm N/A 16.0 mm N/A
N/A M12x1.75 N/A 4.5 mm N/A 7.5 mm N/A 28.80 mm N/A 16.0 mm N/A
