• CKLM2

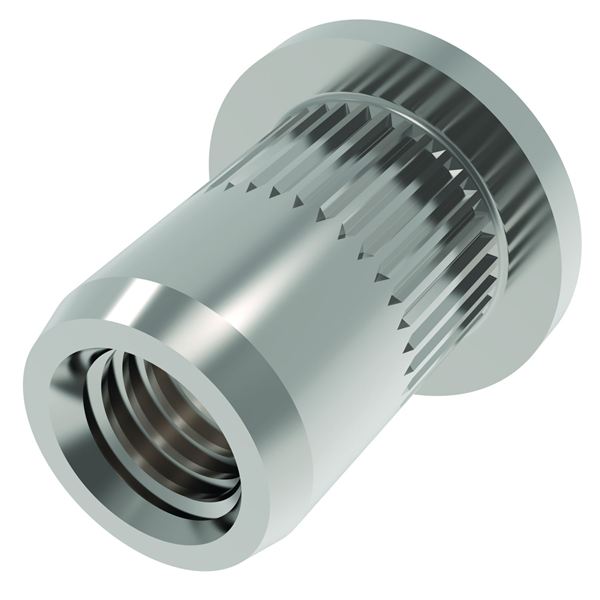

Sherex's full metric round body, large flange rivet nuts are perfect for all applications. The knurls on body of the rivet nuts help resistance spin out once installed. This is amongst the most popular rivet nuts on the market and is used in all industries. Available in M3 - M12 thread sizes.

Click here for CKLM Closed End products>



1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Thread Size

Grip Range Min

Grip Range Max

Length Nom. (±0.25)

Installed Length Ref. Max

Hole Size (+0.1)

CAD

N/A M3x0.5 N/A 0.5 mm N/A 2.0 mm N/A 9.75 mm N/A 6.0 mm N/A 5.0 mm N/A
N/A M3x0.5 N/A 2.0 mm N/A 3.5 mm N/A 11.25 mm N/A 6.0 mm N/A 5.0 mm N/A
N/A M4x0.7 N/A 0.5 mm N/A 2.5 mm N/A 11.00 mm N/A 6.3 mm N/A 6.0 mm N/A
N/A M4x0.7 N/A 2.5 mm N/A 4.5 mm N/A 12.50 mm N/A 6.3 mm N/A 6.0 mm N/A
N/A M5x0.8 N/A 0.5 mm N/A 3.0 mm N/A 11.75 mm N/A 7.3 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 3.0 mm N/A 5.5 mm N/A 14.50 mm N/A 8.0 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 5.5 mm N/A 8.0 mm N/A 17.00 mm N/A 8.0 mm N/A 7.0 mm N/A
N/A M6x1.0 N/A 0.5 mm N/A 3.0 mm N/A 12.80 mm N/A 8.0 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 3.0 mm N/A 5.5 mm N/A 15.40 mm N/A 8.2 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 5.5 mm N/A 8.0 mm N/A 17.90 mm N/A 8.2 mm N/A 9.0 mm N/A
N/A M8x1.25 N/A 0.5 mm N/A 3.0 mm N/A 16.20 mm N/A 11.0 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 3.0 mm N/A 5.5 mm N/A 18.90 mm N/A 11.0 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 5.5 mm N/A 8.0 mm N/A 21.40 mm N/A 11.0 mm N/A 11.0 mm N/A
N/A M10x1.5 N/A 0.7 mm N/A 3.5 mm N/A 19.80 mm N/A 13.9 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 3.5 mm N/A 6.0 mm N/A 22.30 mm N/A 14.0 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 6.0 mm N/A 9.0 mm N/A 25.30 mm N/A 14.0 mm N/A 13.0 mm N/A
N/A M12x1.75 N/A 1.5 mm N/A 4.5 mm N/A 27.80 mm N/A 17.8 mm N/A 16.0 mm N/A
N/A M12x1.75 N/A 4.5 mm N/A 7.5 mm N/A 30.80 mm N/A 17.8 mm N/A 16.0 mm N/A
