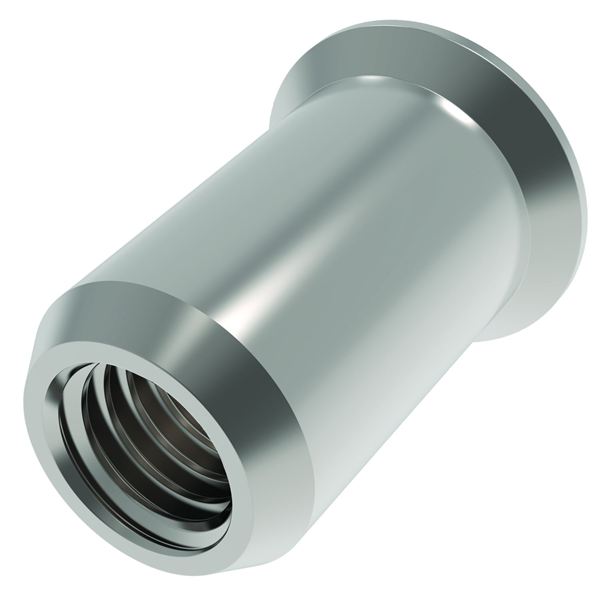

• COCM-Image-Open

Sherex's full metric countersunk, smooth body rivet nuts are perfect for all applications. When installed, countersunk rivet nuts are flush to the base material, giving an asthetic many manufacurers and assemblers desire. Available in thread sizes M3 - M12 and in multiple grip ranges.

Click here for COCM Closed End Rivet Nuts>>

1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Thread Size

Grip Range Min

Grip Range Max

Length Nom. (±0.25)

Hole Size (+0.1)

CAD

N/A M3x0.5 N/A 1.5 mm N/A 3.0 mm N/A 8.80 mm N/A 5.0 mm N/A
N/A M3x0.5 N/A 3.0 mm N/A 4.5 mm N/A 10.40 mm N/A 5.0 mm N/A
N/A M4x0.7 N/A 1.5 mm N/A 3.5 mm N/A 11.50 mm N/A 6.0 mm N/A
N/A M4x0.7 N/A 3.5 mm N/A 5.0 mm N/A 13.00 mm N/A 6.0 mm N/A
N/A M5x0.8 N/A 1.5 mm N/A 4.0 mm N/A 13.70 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 4.0 mm N/A 6.5 mm N/A 16.70 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 6.5 mm N/A 9.0 mm N/A 19.80 mm N/A 7.0 mm N/A
N/A M6x1.0 N/A 1.5 mm N/A 4.0 mm N/A 15.70 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 4.0 mm N/A 6.5 mm N/A 20.30 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 6.5 mm N/A 9.0 mm N/A 21.80 mm N/A 9.0 mm N/A
N/A M8x1.25 N/A 1.5 mm N/A 4.0 mm N/A 17.80 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 4.0 mm N/A 6.5 mm N/A 20.80 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 6.5 mm N/A 9.0 mm N/A 23.75 mm N/A 11.0 mm N/A
N/A M10x1.5 N/A 1.5 mm N/A 4.0 mm N/A 21.80 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 4.0 mm N/A 6.5 mm N/A 24.75 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 6.5 mm N/A 9.0 mm N/A 28.00 mm N/A 13.0 mm N/A
N/A M12x1.75 N/A 2.0 mm N/A 4.5 mm N/A 25.90 mm N/A 16.0 mm N/A
N/A M12x1.75 N/A 4.5 mm N/A 7.5 mm N/A 29.00 mm N/A 16.0 mm N/A
