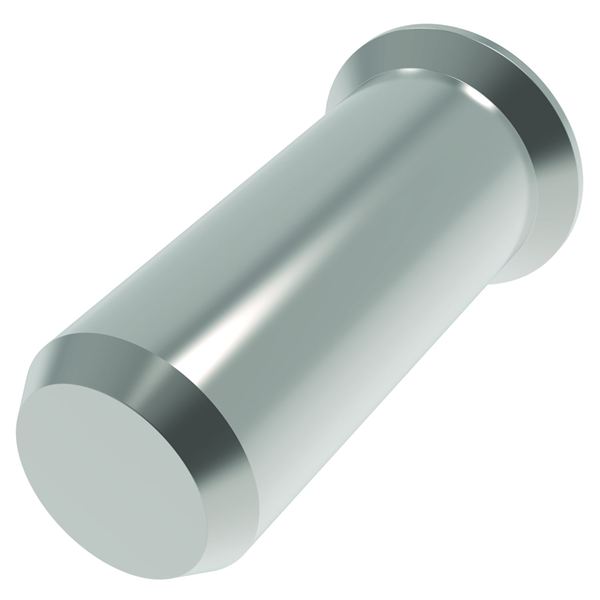

COCM Series - Countersunk, Smooth, Closed End
Full Metric Round Body Rivet Nuts
Sherex's countersunk, smooth body full metric rivet nuts are perfect for all applications. When installed, countersunk rivet nuts are flush to the base material, giving an asthetic many manufacurers and assemblers desire. Closed end will eliminate dust and liquid from entering through the threads of the rivet nut.
Item # |
Thread Size |
Grip Range Min |
Grip Range Max |
Length Nom. (±0.25) |
Hole Size (+0.1) |
CAD |
|---|---|---|---|---|---|---|
| COCM2-470-3.5B | Thread Size N/A M4x0.7 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 3.5 mm | Length Nom. (±0.25) N/A 17.40 mm | Hole Size (+0.1) N/A 6.0 mm |
CAD
N/A
|
| COCM2-580-4.0B | Thread Size N/A M5x0.8 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 21.30 mm | Hole Size (+0.1) N/A 7.0 mm |
CAD
N/A
|
| COCM2-610-4.0B | Thread Size N/A M6x1.0 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 22.70 mm | Hole Size (+0.1) N/A 9.0 mm |
CAD
N/A
|
| COCM2-8125-4.0B | Thread Size N/A M8x1.25 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 25.70 mm | Hole Size (+0.1) N/A 11.0 mm |
CAD
N/A
|
| COCM2-1015-4.0B | Thread Size N/A M10x1.5 | Grip Range Min N/A 1.5 mm | Grip Range Max N/A 4.0 mm | Length Nom. (±0.25) N/A 31.80 mm | Hole Size (+0.1) N/A 13.0 mm |
CAD
N/A
|
| COCM2-12175-4.5B | Thread Size N/A M12x1.75 | Grip Range Min N/A 2.0 mm | Grip Range Max N/A 4.5 mm | Length Nom. (±0.25) N/A 37.80 mm | Hole Size (+0.1) N/A 16.0 mm |
CAD
N/A
|
