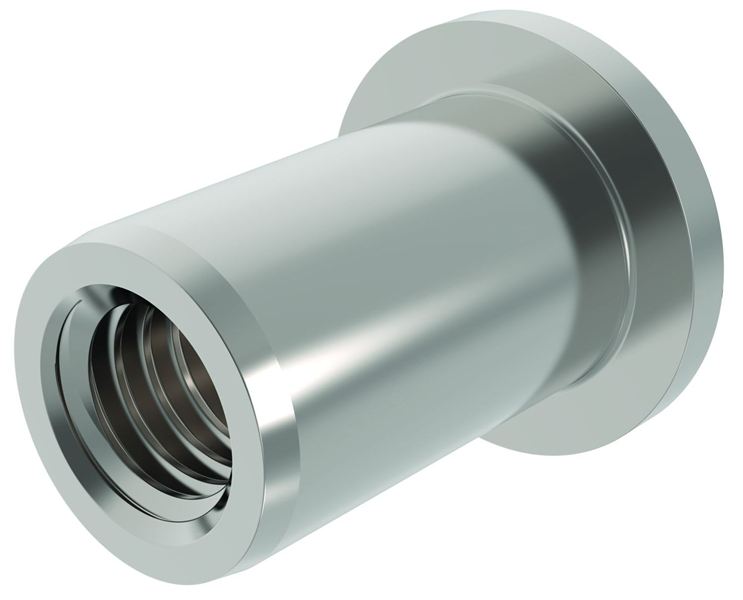

Sherex's full metric, smooth, round body, large flange rivet nuts are perfect for light duty applications that don't experience high torque or clamp load. Rivet nuts help assemblers decrease assembly times, rework, or secondary processes compared to weld nuts. Available in thread sizes M3 - M12 and in multiple grip ranges.

1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Thread Size

Grip Range Min

Grip Range Max

Length Nom. (±0.25)

Hole Size (+0.1)

CAD

N/A M3x0.5 N/A 0.5 mm N/A 2.0 mm N/A 9.75 mm N/A 5.0 mm N/A
N/A M3x0.5 N/A 2.0 mm N/A 3.5 mm N/A 11.25 mm N/A 5.0 mm N/A
N/A M4x0.7 N/A 0.5 mm N/A 2.5 mm N/A 11.00 mm N/A 6.0 mm N/A
N/A M4x0.7 N/A 2.5 mm N/A 4.5 mm N/A 12.50 mm N/A 6.0 mm N/A
N/A M5x0.8 N/A 0.5 mm N/A 3.0 mm N/A 12.75 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 3.0 mm N/A 5.5 mm N/A 15.70 mm N/A 7.0 mm N/A
N/A M5x0.8 N/A 5.5 mm N/A 8.0 mm N/A 18.80 mm N/A 7.0 mm N/A
N/A M6x1.0 N/A 0.5 mm N/A 3.0 mm N/A 14.30 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 3.0 mm N/A 5.5 mm N/A 17.20 mm N/A 9.0 mm N/A
N/A M6x1.0 N/A 5.5 mm N/A 8.0 mm N/A 20.20 mm N/A 9.0 mm N/A
N/A M8x1.25 N/A 0.5 mm N/A 3.0 mm N/A 16.30 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 3.0 mm N/A 5.5 mm N/A 19.30 mm N/A 11.0 mm N/A
N/A M8x1.25 N/A 5.5 mm N/A 8.0 mm N/A 22.30 mm N/A 11.0 mm N/A
N/A M10x1.5 N/A 0.7 mm N/A 3.5 mm N/A 20.75 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 3.5 mm N/A 6.0 mm N/A 23.75 mm N/A 13.0 mm N/A
N/A M10x1.5 N/A 6.0 mm N/A 9.0 mm N/A 25.75 mm N/A 13.0 mm N/A
N/A M12x1.75 N/A 1.0 mm N/A 4.0 mm N/A 24.70 mm N/A 16.0 mm N/A
N/A M12x1.75 N/A 4.0 mm N/A 7.0 mm N/A 27.70 mm N/A 16.0 mm N/A
