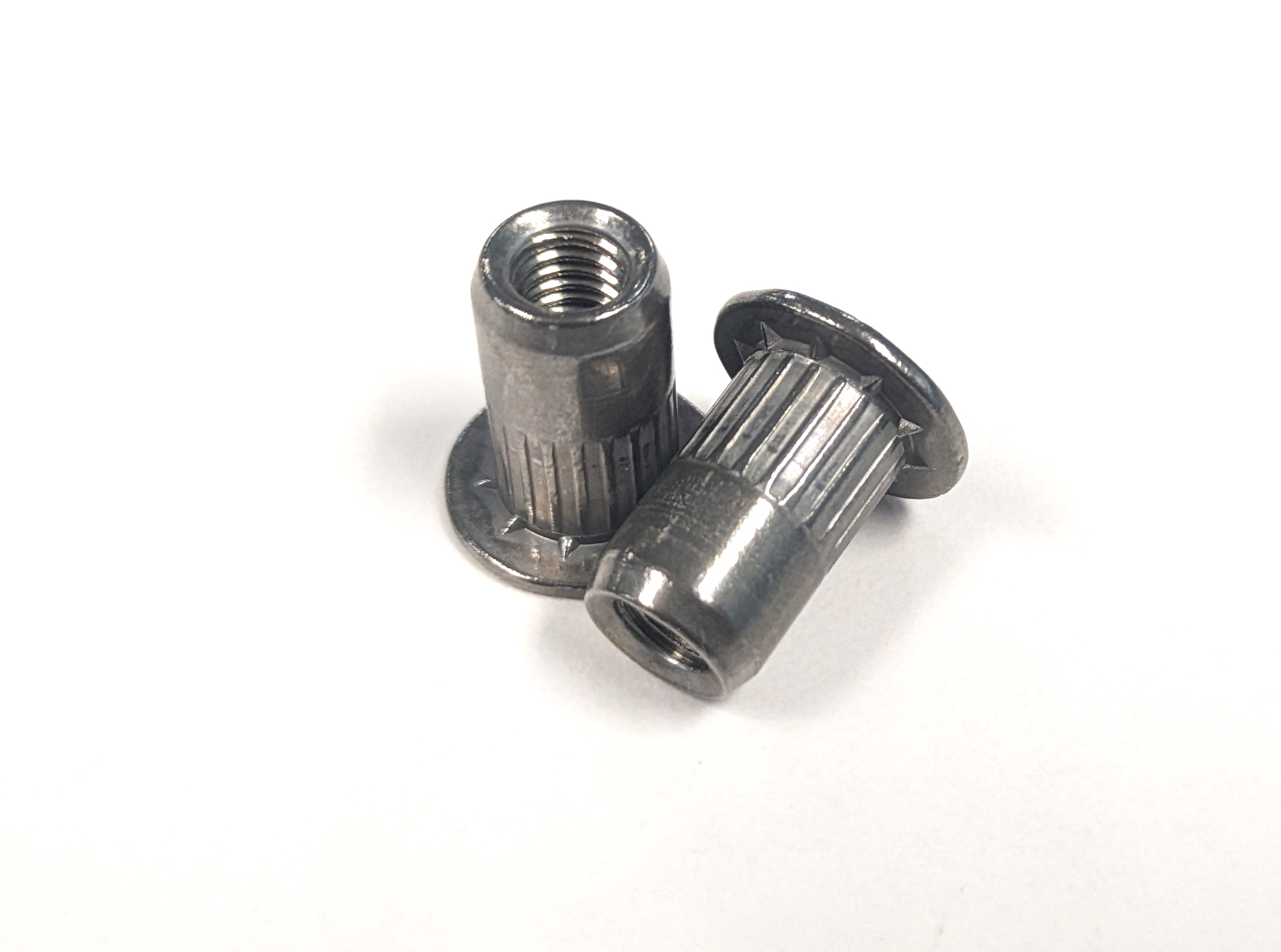

• Optisert Stainless Rivet Nut

The best performing round body rivet nut on the market today just got a little better.

Sherex is now offering Optisert in stainless steel for applications that need better corrosion resistance. Automotive, heavy truck, marine industries and applications that use plastics and composites will benefit the most using the standard stainless steel Optisert.

Optisert's unique diamond-shaped wedges underneath the head give it a superior grip that helps deters spin-out in the base material of the application.

Optisert is available in a variety of options, including open-end, closed-end, and in a variety of different finishings and optional seals. Please download our 3D models and if you have any questions, please contact us!

Please note: Grip range can be affected by parent material and hole size. Sherex recommends trial installations to determine the proper grip range for the application. Contact Sherex for details.

1 - 18 of 18 | Results Per Page | View |
1
Request Information Compare Items Search by Specification
Clear Filter

Thread Size

Item #

Thread Size

Grip Range
(Min.-Max.)

L ±.38
(mm)

HT ± .10

D (Max.)
(mm)

IL (Max.)
(mm)

Hole Size
+.15/-.000 (mm)

3D CAD

N/A M4 x 0.7 N/A 1.5 - 3.0 N/A 14.5 N/A 0.95 N/A 7.58 N/A 10.50 N/A 7.60 N/A
N/A M4 x 0.7 N/A 3.0 - 5.5 N/A 17.00 N/A 0.95 N/A 7.58 N/A 10.50 N/A 7.60 N/A
N/A M4 x 0.7 N/A 5.5 - 8.0 N/A 19.5 N/A 0.95 N/A 7.58 N/A 10.50 N/A 7.60 N/A
N/A M5 x 0.8 N/A 1.5 - 3.0 N/A 14.5 N/A 0.95 N/A 7.58 N/A 10.50 N/A 7.60 N/A
N/A M5 x 0.8 N/A 3.0 - 5.5 N/A 17.00 N/A 0.95 N/A 7.58 N/A 10.50 N/A 7.60 N/A
N/A M5 x 0.8 N/A 5.5 - 8.0 N/A 19.5 N/A 0.95 N/A 7.58 N/A 10.50 N/A 7.60 N/A
N/A M6 x 1.0 N/A 1.5 - 3.5 N/A 16.05 N/A 1.28 N/A 9.98 N/A 11.00 N/A 10.00 N/A
N/A M6 x 1.0 N/A 3.5 - 6.0 N/A 18.79 N/A 1.28 N/A 9.98 N/A 11.00 N/A 10.00 N/A
N/A M6 x 1.0 N/A 6.0 - 8.5 N/A 21.29 N/A 1.28 N/A 9.98 N/A 11.00 N/A 10.00 N/A
N/A M8 x 1.25 N/A 1.5 - 3.5 N/A 17.53 N/A 1.58 N/A 13.48 N/A 12.50 N/A 13.50 N/A
N/A M8 x 1.25 N/A 3.5 - 6.0 N/A 20.45 N/A 1.58 N/A 13.48 N/A 12.50 N/A 13.50 N/A
N/A M8 x 1.25 N/A 6.0 - 8.5 N/A 22.95 N/A 1.58 N/A 13.48 N/A 12.50 N/A 13.50 N/A
N/A M10 x 1.5 N/A 1.5 - 3.5 N/A 23.53 N/A 1.88 N/A 15.85 N/A 18.5 N/A 15.87 N/A
N/A M10 x 1.5 N/A 3.5 - 6.0 N/A 26.03 N/A 1.88 N/A 15.85 N/A 18.5 N/A 15.87 N/A
N/A M10 x 1.5 N/A 6.0 - 8.5 N/A 28.53 N/A 1.88 N/A 15.85 N/A 18.5 N/A 15.87 N/A
N/A M12 x 1.75 N/A 1.5 - 3.5 N/A 27.50 N/A 2.16 N/A 17.4 N/A 22.5 N/A 17.45 N/A
N/A M12 x 1.75 N/A 3.5 - 6.0 N/A 29.50 N/A 2.16 N/A 17.4 N/A 22.5 N/A 17.45 N/A
N/A M12 x 1.75 N/A 6.0 - 8.5 N/A 31.50 N/A 2.16 N/A 17.4 N/A 22.5 N/A 17.45 N/A
